Pump-set according to NFPA-20

The fixed point
for your

SAFETY

The evolution of safety is named Exstinguo

Protection against fire is essential for people and property. When it comes to fire protection, safety is an important requirement and pumps are the most critical component. For these reasons, Idroelettrica SpA created EXSTINGUO, a new series of NFPA-20 fire pump-sets.

The FM APPROVED mark ensures that a product or service has been objectively tested and conforms to FM’s requirements. Customers rely on FM APPROVED products to be certain that products and services will perform as expected.

FM Approved Split Case Pumps

Idroelettrica IDSC Split Case pumps range has been certified FM Approval Class 1311. Fire pumps tested and certified by FM Approvals offer to the end user the confidence that all major components have been tested against a strict set of criteria to ensure the fire pump will deliver the required performance, even in the harshest conditions. Customers rely on FM APPROVED products to ensure that they perform as intended. FM APPROVED is a mark used for fire protection systems as a key element in the protection and safety of buildings, and its universal recognition is a guarantee for the project and often leads to financial benefits in terms of reduced insurance rates.

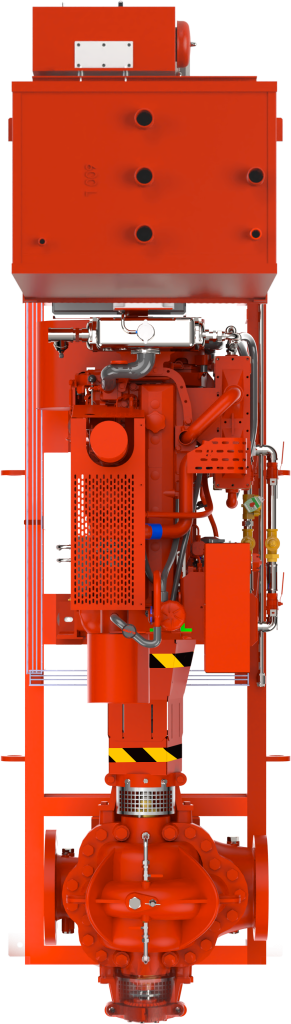

Pump-set according to NFPA-20

Targa identificativa di un gruppo Exstinguo

Certificate of Compliance

FIREBOX EXSTINGUO

Not only Pump-set!

The EXSTINGUO fire protection system can also be integrated into a complete, self-contained fire pump house: FIREBOX®. The enclosure consists of a prefabricated fire-fighting outdoor module ready to be installed. Entirely manufactured in Idroelettrica SpA, and fully compliant with UNI EN 1090 standard, which is necessary to certify metal structures correctly and to issue CE certificate. The R60 supporting structure, easy to transport, allows total accessibility to people and components along the entire perimeter as it is surrounded by doors.

Pump range Horizontal Split Case IDSC - FM serie

Pump Body
Cast Iron
Impeller
Bronze
Wear ring
Bronze
Shaft
Stainless Steel
Shaft Seal
Soft packing Fiber & PTFE

Performance characteristics

Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-4H10
6
4
82 - 162
71 - 140
60 - 107
58-103
52 - 93
-
IDSC6-4H12L
6
4
-
-
120-187
104-162
104-162
88-139
Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-4H10
6
4
82 - 159
70 - 137
58 - 104
55-100
49 - 89
-
IDSC6-4H12L
6
4
-
-
115-183
111-177
99-158
88-135
Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-4H10
6
4
82 - 158
69 - 136
56 - 102
53-198
47 - 87
-
IDSC6-4H12L
6
4
-
-
113-181
109-174
97-155
82-133
Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-4H10
6
4
79-157
67-133
53-99
51-96
45-85
-
IDSC6-4H12L
6
4
-
-
110-177
106-171
94-152
78-129
Model
Inlet
Ø in
Outlet
Ø in
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-4H12
6
4
112-172
107-166
94-147
79-122
Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-5H11
6
5
-
-
111-173
107-166
94-147
72-122
IDSC6-6H10
6
6
123-173
105-148
91-123
88-119
78-106
-
IDSC8-6H14
8
6
-
-
185-237
178-229
159-204
135-173
Model
Inlet
Ø in
Outlet
Ø in
3500
r/min
3300
r/min
3000
r/min
2950
r/min
2800
r/min
2600
r/min
IDSC6-6H10
6
6
119-169
101-145
87-119
83-115
74-102
-
IDSC8-6H12
8
6
-
-
121-179
115-170
134-154
83-132
Model
Inlet
Ø in
Outlet
Ø in
3000
r/min
2950
r/min
1800
r/min
480
r/min
IDSC8-6H12
8
6
114-174
108-165
-
-
IDSC8-6H18
8
6
-
-
101-124
-
IDSC8-6H21
8
6
-
-
-
100-140
Model
Inlet
Ø in
Outlet
Ø in
3000
r/min
2950
r/min
2800
r/min
2350
r/min
2100
r/min
1800
r/min
1770
r/min
1760
r/min
1480
r/min
1470
r/min
IDSC10-8H13
10
8
138-173
135-166
120-146
-
-
-
-
-
-
-
IDSC12-8H15
12
8
-
-
-
106-153
83-120
-
-
-
-
-
IDSC10-8H17
10
8
-
-
-
-
-
-
110-140
-
-
-
IDSC10-8H20
10
8
-
-
-
-
-
123-178
-
118-170
-
80-116
IDSC10-8H21
10
8
-
-
-
-
-
-
-
-
98-126
-
Model
Inlet
Ø in
Outlet
Ø in
2950
r/min
2800
r/min
2350
r/min
1800
r/min
1770
r/min
1760
r/min
1470
r/min
IDSC12-8H15
12
8
162-187
144-168
100-146
-
-
-
-
IDSC10-8H17
10
8
-
-
-
-
106-153
-
-
IDSC10-8H20
10
8
-
-
-
117-173
-
112-165
73-110
Model
Inlet
Ø in
Outlet
Ø in
2950
r/min
2800
r/min
IDSC12-8H15
12
8
154-179
137-160
